Home > Our products > Silentblocs > M/F Anti-Vibration mount > M/F Anti-Vibration mount D.40mm

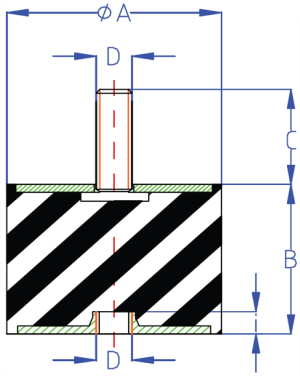

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
Print

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
5.77 € HT Piece
6.92 € TTC
Available
-
+
Print
Features
Reference
LE MR0NM8
Material
Steel
Thread
isometric
Height
28 mm
Thread height
30 mm
Thread depth
6 mm
Thread diameter
M8
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.55 € HT Piece
7.86 € TTC
Unavailable
-
+
Add to cart
Print
Features
Reference
LE MR4020
Material
Steel
Thread
isometric
Height
20 mm
Thread height
25 mm
Thread depth
7 mm
Thread diameter
M10
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.69 € HT Piece
8.03 € TTC
Available
-
+
Print
Features
Reference
LE MR4025
Material
Steel
Thread
isometric
Height
25 mm
Thread height
25 mm
Thread diameter
M10
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.22 € HT Piece
7.46 € TTC
Available
-
+
Print
Features
Reference
LE MR4028M10X25
Material
Steel
Thread
isometric
Height
28 mm
Thread height
25 mm
Thread depth
7 mm
Thread diameter
M10
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.13 € HT Piece
7.36 € TTC
Unavailable
-
+
Add to cart
Print
Features
Reference
LE MR4028M8X20
Material
Steel
Thread
isometric
Height
28 mm
Thread height
20 mm
Thread depth
6 mm
Thread diameter
M8
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
5.85 € HT Piece
7.02 € TTC
Unavailable
-
+
Add to cart
Print
Features
Reference
LE MR4028M8X30
Material
Steel
Thread
isometric
Height
28 mm
Thread height
30 mm
Thread depth
6 mm
Thread diameter
M8
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.40 € HT Piece
7.68 € TTC
Available
-
+
Print
Features
Reference
LE MR4030
Material
Steel
Thread
isometric
Height
30 mm
Thread height
25 mm
Thread diameter
M10
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.86 € HT Piece
8.23 € TTC
Available
-
+
Print
Features
Reference
LE MR4035
Material
Steel
Thread
isometric
Height
35 mm
Thread height
25 mm
Thread depth
7 mm
Thread diameter
M10
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
7.00 € HT Piece
8.40 € TTC
Available
-
+
Print
Features
Reference
LE MR4040
Material
Steel
Thread
isometric
Height
40 mm
Thread height
25 mm
Thread depth
7 mm
Thread diameter
M10
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.80 € HT Piece
8.16 € TTC
Available
-
+
Print
Features
Reference
LE MR4040M8
Material
Steel
Thread
isometric
Height
40 mm
Thread height
20 mm
Thread diameter
M8
Diameter
40 mm
Hardness
50

M/F Anti-Vibration mount D.40mm

Height 20 to 45 mm | Thread M8 et M10

Reference
Silentblocks are used to reduce vibrations, shocks or noise by equipment. The part is composed of a metal connection part and a NBR damping part. Not compatible with Oil and Gas.
6.74 € HT Piece
8.09 € TTC
Available
-
+
Print
Features
Reference
LE MR4045
Material
Steel
Thread
isometric
Height
45 mm
Thread height
25 mm
Thread depth
7 mm
Thread diameter
M10
Diameter
40 mm
Hardness
50
