Home > Our products > Protection and guiding tubes > Protection Tube for rod 10mm

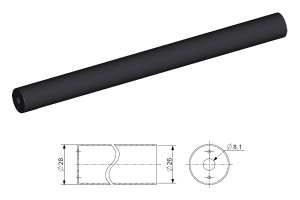

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
Print

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
7.80 € HT Piece
9.36 € TTC
Available
-
+
Print
Features
Reference
ST TU10200N
Material
Steel
Stroke
200 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
7.80 € HT Piece
9.36 € TTC
Available
-
+
Print
Features
Reference
ST TU10250
Material
Steel
Stroke
250 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
8.11 € HT Piece
9.73 € TTC
Unavailable
-
+
Add to cart
Print
Features
Reference
ST TU10350
Material
Steel
Stroke
350 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
9.65 € HT Piece
11.58 € TTC
Unavailable
-
+
Add to cart
Print
Features
Reference
ST TU10500
Material
Steel
Stroke
500 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
10.04 € HT Piece
12.05 € TTC
Unavailable
-
+
Add to cart
Print
Features
Reference
ST TU10550
Material
Steel
Stroke
550 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
10.42 € HT Piece
12.50 € TTC
Available
-
+
Print
Features
Reference
ST TU10600
Material
Steel
Stroke
600 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
10.80 € HT Piece
12.96 € TTC
Available
-
+
Print
Features
Reference
ST TU10650
Material
Steel
Stroke
650 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm

Protection Tube for rod 10mm

Hole 8.5 mm | Stroke from 200 to 700 mm

Reference
This protection tube can be used to protect rods against dirt, but also for long stroke gas springs (more than 400mm stroke), as a guide tube to limit rod bending risk. Not compatible with welded eyes gas springs.
11.18 € HT Piece
13.42 € TTC
Available
-
+
Print
Features
Reference
ST TU10700
Material
Steel
Stroke
700 mm
Rod diameter
10 mm
Tube diameter
28 mm
Tube material
Black epoxy painted steel
Hole
8.5 mm
