Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
Traceparts
Print

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
2.81 € HT Piece
3.37 € TTC
Available
-
+
Traceparts
Print
Features
Reference
HG CHM6
Material
Steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.1 mm
Thickness
10 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
9.98 € HT
11.98 € TTC
Available
-
+
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
7.93 € HT
9.52 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
2.81 € HT Piece
3.37 € TTC
Available
-
+
Traceparts
Print
Features
Reference
HG CHM6-10
Material
Steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Thread
isometric
End fitting type
Threaded eye
Hole
10.1 mm
Thickness
10 mm
Thread depth
11 mm
Threading
M6

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
1.41 € HT Piece
1.69 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092217
Material
Steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.1 mm
Thickness
5 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST P100D8 |
ST P100D8
ST P100D8 |
ST P100D8
8.85 € HT
10.62 € TTC
Available
-
+
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
7.93 € HT
9.52 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
1.41 € HT Piece
1.69 € TTC
Unavailable
-
+
Add to cart
Traceparts
Print
Features
Reference
ST 092218
Material
Steel
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.1 mm
Thickness
5 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST P100D8 |
ST P100D8
ST P100D8 |
ST P100D8
8.85 € HT
10.62 € TTC
Available
-
+
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
7.93 € HT
9.52 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
2.18 € HT Piece
2.62 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092259
Material
Zamak
Length
16.5 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
16.5 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.5 mm
Thickness
8 mm
Thread depth
10 mm
Threading
M6
Related products
The items below are suitable for your selected product
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
9.98 € HT
11.98 € TTC
Available
-
+
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
7.93 € HT
9.52 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
2.23 € HT Piece
2.68 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092263
Material
Aluminium
Length
17.5 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
17.5 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.6 mm
Thickness
8 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
9.98 € HT
11.98 € TTC
Available
-
+
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
7.93 € HT
9.52 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
1.15 € HT Piece
1.38 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092521
Material
Plastic
Length
23.5 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
23.5 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.6 mm
Thickness
8 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
9.98 € HT
11.98 € TTC
Available
-
+
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
HG 101 | Flat Bracket - Axis of 8 mm
HG 101
7.93 € HT
9.52 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
1.15 € HT Piece
1.38 € TTC
Available
-
+
Traceparts
Print
Features
Reference

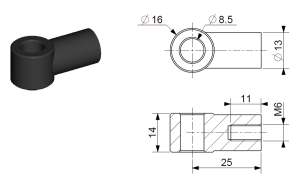

ST 092522
Material
Plastic
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.5 mm
Thickness
14 mm
Thread depth
11 mm
Threading
M6

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
1.15 € HT Piece
1.38 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092522-6
Material
Plastic
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Thread
isometric
End fitting type
Threaded eye
Hole
6.1 mm
Thickness
14 mm
Thread depth
11 mm
Threading
M6

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
1.15 € HT Piece
1.38 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092528
Material
Plastic
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Thread
isometric
End fitting type
Threaded eye
Hole
6.1 mm
Thickness
10 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST P101 | Raised Bracket with Axis of 6 mm | Aluminium
ST P101
ST P101 | Raised Bracket with Axis of 6 mm | Aluminium
ST P101
9.77 € HT
11.72 € TTC
Available
-
+
ST P100 | "U" Bracket of 6 mm | Aluminium
ST P100
ST P100 | "U" Bracket of 6 mm | Aluminium
ST P100
8.85 € HT
10.62 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
1.67 € HT Piece
2.00 € TTC
Available
-
+
Traceparts
Print
Features
Reference

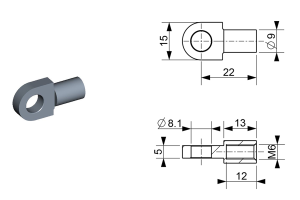

ST 1304
Material
Steel
Length
22 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
22 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.1 mm
Thickness
5 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST P101D8 | Raised Bracket with Axis of 8 mm | Aluminium
ST P101D8
ST P101D8 | Raised Bracket with Axis of 8 mm | Aluminium
ST P101D8
9.77 € HT
11.72 € TTC
Available
-
+
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
9.98 € HT
11.98 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
2.31 € HT Piece
2.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 1305
Material
Steel
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Thread
isometric
End fitting type
Threaded eye
Hole
6.1 mm
Thickness
5 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST P101 | Raised Bracket with Axis of 6 mm | Aluminium
ST P101
ST P101 | Raised Bracket with Axis of 6 mm | Aluminium
ST P101
9.77 € HT
11.72 € TTC
Available
-
+
ST P100 | "U" Bracket of 6 mm | Aluminium
ST P100
ST P100 | "U" Bracket of 6 mm | Aluminium
ST P100
8.85 € HT
10.62 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
2.39 € HT Piece
2.87 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 1305-8
Material
Steel
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.1 mm
Thickness
5 mm
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST P101D8 | Raised Bracket with Axis of 8 mm | Aluminium
ST P101D8
ST P101D8 | Raised Bracket with Axis of 8 mm | Aluminium
ST P101D8
9.77 € HT
11.72 € TTC
Available
-
+
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
9.98 € HT
11.98 € TTC
Available
-
+

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference
Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
3.69 € HT Piece
4.43 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 4180
Material
Steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Thread
isometric
End fitting type
Threaded eye
Hole
10.1 mm
Thickness
10 mm
Thread depth
11 mm
Threading
M6

Eyes - Thread M6

Hole 6.1 | 8.1 | 8.5 | 8.6 | 10.1 mm

Reference

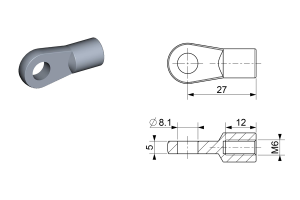

Eyes clevis are very popular on gas springs. However, they require perfect parallelism of the fixing axes, otherwise the gas spring can be damaged. Always leave the eyes free to rotate on their axis. Available in different threads and holes.
3.69 € HT Piece
4.43 € TTC
Unavailable
-
+
Add to cart
Traceparts
Print
Features
Reference
ST 4185
Material
Steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Thread
isometric
End fitting type
Threaded eye
Hole
8.1 mm
Thickness
10 mm
Thread depth
14 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST P101D8 | Raised Bracket with Axis of 8 mm | Aluminium
ST P101D8
ST P101D8 | Raised Bracket with Axis of 8 mm | Aluminium
ST P101D8
9.77 € HT
11.72 € TTC
Available
-
+
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
HG 100/2 | "U" Bracket of 8 mm | Steel
HG 100/2
9.98 € HT
11.98 € TTC
Available
-
+
Manage my cookies

We use cookies
We use cookies and other tracking technologies to enhance your experience on our site, to show you personalized content and targeted advertisements, to analyze our site traffic, and to understand where our visitors come from.

Accept
Refuse
