Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
Print

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 150+F1V+D14E368
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
150 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
368 mm
Gas spring min. force
200 N
Gas spring max. force
2400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product

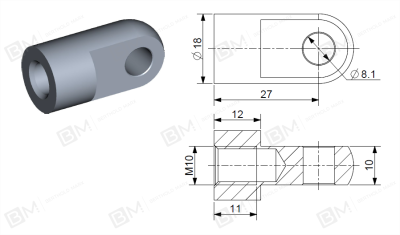

HG CH10 | Hole 8.1 mm | L 27 mm | Th 10 mm | Steel
HG CH10
HG CH10 | Hole 8.1 mm | L 27 mm | Th 10 mm | Steel
HG CH10
3.64 € HT
4.37 € TTC
Available
-
+
ST 092262-10 | Ball 16 mm | Socket M10 | Ball End M10 | Steel
ST 092262-10
ST 092262-10 | Ball 16 mm | Socket M10 | Ball End M10 | Steel
ST 092262-10
12.58 € HT
15.10 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 200+F1V+D14 M10
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
200 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
455 mm
Gas spring min. force
200 N
Gas spring max. force
2400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14200 | Rod 14 mm | Stroke 200 mm | Steel
ST TU14200
ST TU14200 | Rod 14 mm | Stroke 200 mm | Steel
ST TU14200
17.10 € HT
20.52 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 250+F1V+D14 M10
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
250 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
555 mm
Gas spring min. force
300 N
Gas spring max. force
2400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14250 | Rod 14 mm | Stroke 250 mm | Steel
ST TU14250
ST TU14250 | Rod 14 mm | Stroke 250 mm | Steel
ST TU14250
17.10 € HT
20.52 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Cuurently out of stock
-
+
Add to cart
Traceparts
Print
Features
Reference
ST 300+F1V+D14 M10
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
300 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
655 mm
Gas spring min. force
300 N
Gas spring max. force
2400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 350+F1V+D14 M10
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
350 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
755 mm
Gas spring min. force
300 N
Gas spring max. force
2400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 400+F1V+D14 M10
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
400 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
855 mm
Gas spring min. force
300 N
Gas spring max. force
2400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14400 | Rod 14 mm | Stroke 400 mm | Steel
ST TU14400
ST TU14400 | Rod 14 mm | Stroke 400 mm | Steel
ST TU14400
18.00 € HT
21.60 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 450+F1V+D14 M10
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
450 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
955 mm
Gas spring min. force
300 N
Gas spring max. force
2400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
99.81 € HT Piece
119.77 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 500+F1V+D14 M10
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
500 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
1055 mm
Gas spring min. force
300 N
Gas spring max. force
2100 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH10 | Hole 8.1 mm | L 27 mm | Th 10 mm | Steel
HG CH10
HG CH10 | Hole 8.1 mm | L 27 mm | Th 10 mm | Steel
HG CH10
3.64 € HT
4.37 € TTC
Available
-
+
ST 092262-10 | Ball 16 mm | Socket M10 | Ball End M10 | Steel
ST 092262-10
ST 092262-10 | Ball 16 mm | Socket M10 | Ball End M10 | Steel
ST 092262-10
12.58 € HT
15.10 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference

The useful stroke is 597 mm

The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
102.06 € HT Piece
122.47 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 600+F1V+D14VA
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
600 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
1255 mm
Gas spring min. force
300 N
Gas spring max. force
2100 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14600 | Rod 14 mm | Stroke 600 mm | Steel
ST TU14600
ST TU14600 | Rod 14 mm | Stroke 600 mm | Steel
ST TU14600
18.45 € HT
22.14 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference

The useful stroke is 647 mm

The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
102.06 € HT Piece
122.47 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 650+F1V+D14VA
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
650 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
1355 mm
Gas spring min. force
300 N
Gas spring max. force
2100 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14650 | Rod 14 mm | Stroke 650 mm | Steel
ST TU14650
ST TU14650 | Rod 14 mm | Stroke 650 mm | Steel
ST TU14650
18.45 € HT
22.14 € TTC
Available
-
+
Add to cart

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference

The useful stroke is 697 mm

The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
102.06 € HT Piece
122.47 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 700+F1V+D14VA
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
700 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
1455 mm
Gas spring min. force
300 N
Gas spring max. force
1800 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14700 | Rod 14 mm | Stroke 700 mm | Steel
ST TU14700
ST TU14700 | Rod 14 mm | Stroke 700 mm | Steel
ST TU14700
18.45 € HT
22.14 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference

The useful stroke is 747 mm

The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
102.06 € HT Piece
122.47 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 750+F1V+D14VA
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
750 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
1555 mm
Gas spring min. force
300 N
Gas spring max. force
1800 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14750 | Rod 14 mm | Stroke 750 mm | Steel
ST TU14750
ST TU14750 | Rod 14 mm | Stroke 750 mm | Steel
ST TU14750
18.45 € HT
22.14 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference

The useful stroke is 797 mm

The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
102.06 € HT Piece
122.47 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 800+F1V+D14VA
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
800 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
1655 mm
Gas spring min. force
300 N
Gas spring max. force
1500 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14800 | Rod 14 mm | Stroke 800 mm | Steel
ST TU14800
ST TU14800 | Rod 14 mm | Stroke 800 mm | Steel
ST TU14800
18.90 € HT
22.68 € TTC
Available
-
+

Threaded Gas Spring - Rod 14mm

Thread M10 | Stroke 150 to 950 mm | Force 200 to 2400N

1. Reference

The useful stroke is 897 mm

The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
102.06 € HT Piece
122.47 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 900+F1V+D14VA
Material
Steel
Rod end fitting
M10 Threaded Gas Spring
Tube end fitting
M10 Threaded Gas Spring
Stroke
900 mm
Rod diameter
14 mm
Tube diameter
27 mm
Rod thread diameter
M10
Tube thread diameter
M10
Extended length
1855 mm
Gas spring min. force
300 N
Gas spring max. force
1500 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT10 | M10 | Aluminium
ST OUT10
ST OUT10 | M10 | Aluminium
ST OUT10
17.96 € HT
21.55 € TTC
Available
-
+
ST TU14900 | Rod 14 mm | Stroke 900 mm | Steel
ST TU14900
ST TU14900 | Rod 14 mm | Stroke 900 mm | Steel
ST TU14900
19.35 € HT
23.22 € TTC
Available
-
+
Manage my cookies

We use cookies
We use cookies and other tracking technologies to enhance your experience on our site, to show you personalized content and targeted advertisements, to analyze our site traffic, and to understand where our visitors come from.

Accept
Refuse
