Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
Print

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 060+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
60 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
180 mm
Gas spring min. force
100 N
Gas spring max. force
1150 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 100+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
100 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
255 mm
Gas spring min. force
100 N
Gas spring max. force
1150 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 115+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
115 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
275 mm
Gas spring min. force
100 N
Gas spring max. force
1150 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 150+F1V+D10 E405
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
150 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
405 mm
Gas spring min. force
250 N
Gas spring max. force
1150 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 150+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
150 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
355 mm
Gas spring min. force
100 N
Gas spring max. force
1150 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 200+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
200 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
455 mm
Gas spring min. force
100 N
Gas spring max. force
1150 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST TUB10200 | Rod 10 mm | Stroke 200 mm | Steel
ST TUB10200
ST TUB10200 | Rod 10 mm | Stroke 200 mm | Steel
ST TUB10200
11.24 € HT
13.49 € TTC
Available
-
+

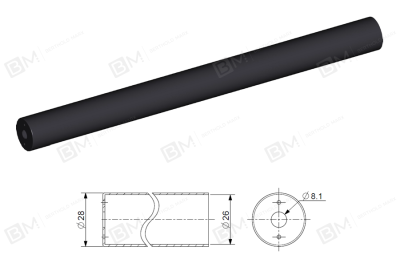

ST TU10200N | Rod 10 mm | Stroke 200 mm | Steel
ST TU10200N
ST TU10200N | Rod 10 mm | Stroke 200 mm | Steel
ST TU10200N
7.80 € HT
9.36 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
54.53 € HT Piece 72.71 €
65.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 200+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
200 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
455 mm
Gas spring min. force
100 N
Gas spring max. force
1150 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST TUB10200 | Rod 10 mm | Stroke 200 mm | Steel
ST TUB10200
ST TUB10200 | Rod 10 mm | Stroke 200 mm | Steel
ST TUB10200
11.24 € HT
13.49 € TTC
Available
-
+
ST TU10200N | Rod 10 mm | Stroke 200 mm | Steel
ST TU10200N
ST TU10200N | Rod 10 mm | Stroke 200 mm | Steel
ST TU10200N
7.80 € HT
9.36 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 250+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
250 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
555 mm
Gas spring min. force
100 N
Gas spring max. force
1050 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST TUB10250 | Rod 10 mm | Stroke 250 mm | Steel
ST TUB10250
ST TUB10250 | Rod 10 mm | Stroke 250 mm | Steel
ST TUB10250
11.24 € HT
13.49 € TTC
Available
-
+
ST TU10250 | Rod 10 mm | Stroke 250 mm | Steel
ST TU10250
ST TU10250 | Rod 10 mm | Stroke 250 mm | Steel
ST TU10250
7.80 € HT
9.36 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 250+F1V+D10E610
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
250 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
610 mm
Gas spring min. force
100 N
Gas spring max. force
1050 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
54.53 € HT Piece 72.71 €
65.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 250+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
250 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
555 mm
Gas spring min. force
100 N
Gas spring max. force
1050 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT8 | M8 | Aluminium
ST OUT8
ST OUT8 | M8 | Aluminium
ST OUT8
17.11 € HT
20.53 € TTC
Available
-
+
ST TUB10250 | Rod 10 mm | Stroke 250 mm | Steel
ST TUB10250
ST TUB10250 | Rod 10 mm | Stroke 250 mm | Steel
ST TUB10250
11.24 € HT
13.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 300+F1V+D10 E711
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
300 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
711 mm
Gas spring min. force
100 N
Gas spring max. force
1050 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 300+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
300 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
655 mm
Gas spring min. force
100 N
Gas spring max. force
1050 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST TUB10300 | Rod 10 mm | Stroke 300 mm | Steel
ST TUB10300
ST TUB10300 | Rod 10 mm | Stroke 300 mm | Steel
ST TUB10300
11.24 € HT
13.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
54.53 € HT Piece 72.71 €
65.44 € TTC
Unavailable
-
+
Add to cart
Traceparts
Print
Features
Reference
ST 300+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
300 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
655 mm
Gas spring min. force
100 N
Gas spring max. force
1050 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT8 | M8 | Aluminium
ST OUT8
ST OUT8 | M8 | Aluminium
ST OUT8
17.11 € HT
20.53 € TTC
Available
-
+
ST TUB10300 | Rod 10 mm | Stroke 300 mm | Steel
ST TUB10300
ST TUB10300 | Rod 10 mm | Stroke 300 mm | Steel
ST TUB10300
11.24 € HT
13.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 350+F1V+D10 E735
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
350 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
735 mm
Gas spring min. force
100 N
Gas spring max. force
1000 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 350+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
350 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
755 mm
Gas spring min. force
100 N
Gas spring max. force
1000 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST TUB10350 | Rod 10 mm | Stroke 350 mm | Steel
ST TUB10350
ST TUB10350 | Rod 10 mm | Stroke 350 mm | Steel
ST TUB10350
11.24 € HT
13.49 € TTC
Available
-
+
ST TU10350 | Rod 10 mm | Stroke 350 mm | Steel
ST TU10350
ST TU10350 | Rod 10 mm | Stroke 350 mm | Steel
ST TU10350
8.11 € HT
9.73 € TTC
Unavailable
-
+
Add to cart

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
54.53 € HT Piece 72.71 €
65.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 350+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
350 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
755 mm
Gas spring min. force
100 N
Gas spring max. force
1000 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT8 | M8 | Aluminium
ST OUT8
ST OUT8 | M8 | Aluminium
ST OUT8
17.11 € HT
20.53 € TTC
Available
-
+
ST TUB10350 | Rod 10 mm | Stroke 350 mm | Steel
ST TUB10350
ST TUB10350 | Rod 10 mm | Stroke 350 mm | Steel
ST TUB10350
11.24 € HT
13.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 400+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
400 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
855 mm
Gas spring min. force
100 N
Gas spring max. force
900 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST TUB10400 | Rod 10 mm | Stroke 400 mm | Steel
ST TUB10400
ST TUB10400 | Rod 10 mm | Stroke 400 mm | Steel
ST TUB10400
11.24 € HT
13.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
54.53 € HT Piece 72.71 €
65.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 400+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
400 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
855 mm
Gas spring min. force
100 N
Gas spring max. force
900 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST OUT8 | M8 | Aluminium
ST OUT8
ST OUT8 | M8 | Aluminium
ST OUT8
17.11 € HT
20.53 € TTC
Available
-
+
ST TUB10400 | Rod 10 mm | Stroke 400 mm | Steel
ST TUB10400
ST TUB10400 | Rod 10 mm | Stroke 400 mm | Steel
ST TUB10400
11.24 € HT
13.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 440+F1V+D10 E960
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
440 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
960 mm
Gas spring min. force
100 N
Gas spring max. force
900 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
HG CH | Hole 8.1 mm | L 20 mm | Th 10 mm | Steel
HG CH
2.81 € HT
3.37 € TTC
Available
-
+
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
ST 092262 | Ball 13 mm | Socket M8 | Ball End M8 | Steel
ST 092262
7.91 € HT
9.49 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
43.16 € HT Piece 57.54 €
51.79 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 500+F1V+D10
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
500 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
1055 mm
Gas spring min. force
100 N
Gas spring max. force
700 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST TUB10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TUB10500
ST TUB10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TUB10500
11.24 € HT
13.49 € TTC
Available
-
+
ST TU10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TU10500
ST TU10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TU10500
9.65 € HT
11.58 € TTC
Unavailable
-
+
Add to cart

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
54.53 € HT Piece 72.71 €
65.44 € TTC
Unavailable
-
+
Add to cart
Traceparts
Print
Features
Reference
ST 500+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
500 mm
Rod diameter
10 mm
Tube diameter
21 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
1055 mm
Gas spring min. force
100 N
Gas spring max. force
700 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST TUB10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TUB10500
ST TUB10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TUB10500
11.24 € HT
13.49 € TTC
Available
-
+
ST TU10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TU10500
ST TU10500 | Rod 10 mm | Stroke 500 mm | Steel
ST TU10500
9.65 € HT
11.58 € TTC
Unavailable
-
+
Add to cart

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
64.22 € HT Piece 85.63 €
77.06 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 550+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
550 mm
Rod diameter
10 mm
Tube diameter
22 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
1155 mm
Gas spring min. force
100 N
Gas spring max. force
700 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST TU10550 | Rod 10 mm | Stroke 550 mm | Steel
ST TU10550
ST TU10550 | Rod 10 mm | Stroke 550 mm | Steel
ST TU10550
10.04 € HT
12.05 € TTC
Available
-
+
Add to cart

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
64.22 € HT Piece 85.63 €
77.06 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 600+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
600 mm
Rod diameter
10 mm
Tube diameter
22 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
1255 mm
Gas spring min. force
100 N
Gas spring max. force
700 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST TU10600 | Rod 10 mm | Stroke 600 mm | Steel
ST TU10600
ST TU10600 | Rod 10 mm | Stroke 600 mm | Steel
ST TU10600
10.42 € HT
12.50 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
64.22 € HT Piece 85.63 €
77.06 € TTC
Unavailable
-
+
Add to cart
Traceparts
Print
Features
Reference
ST 650+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
650 mm
Rod diameter
10 mm
Tube diameter
22 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
1355 mm
Gas spring min. force
100 N
Gas spring max. force
700 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST TU10650 | Rod 10 mm | Stroke 650 mm | Steel
ST TU10650
ST TU10650 | Rod 10 mm | Stroke 650 mm | Steel
ST TU10650
10.80 € HT
12.96 € TTC
Available
-
+

Threaded Gas Spring - Rod 10mm

Thread M8 | Stroke 60 to 700 mm | Force 100 to 1150N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
64.22 € HT Piece 85.63 €
77.06 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 700+F1V+D10VA
Material
Steel
Rod end fitting
M8 Threaded Gas Spring
Tube end fitting
M8 Threaded Gas Spring
Stroke
700 mm
Rod diameter
10 mm
Tube diameter
22 mm
Rod thread diameter
M8
Tube thread diameter
M8
Extended length
1455 mm
Gas spring min. force
100 N
Gas spring max. force
700 N
Thread
isometric
Rod material
Chrome steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
oui
Related products
The items below are suitable for your selected product
ST TU10700 | Rod 10 mm | Stroke 700 mm | Steel
ST TU10700
ST TU10700 | Rod 10 mm | Stroke 700 mm | Steel
ST TU10700
11.18 € HT
13.42 € TTC
Available
-
+
Manage my cookies

We use cookies
We use cookies and other tracking technologies to enhance your experience on our site, to show you personalized content and targeted advertisements, to analyze our site traffic, and to understand where our visitors come from.

Accept
Refuse
